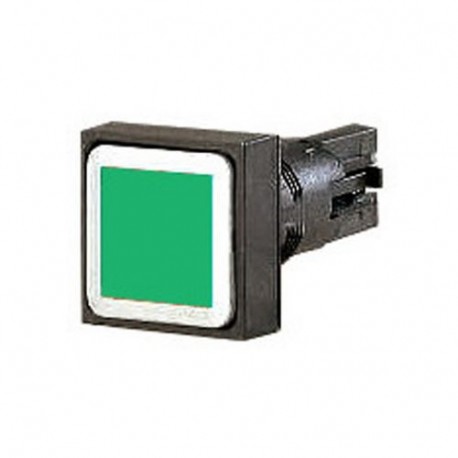

Q25D-GN 086409 Y7-86409 EATON ELECTRIC Pushbutton, green, momentary
Q25D-GN
086409
Y7-86409
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller Q25D-GN pushbutton functions as a compact operator control device, allowing personnel to issue momentary electrical signals within industrial automation panels. These square-profile actuators are integrated into control desks for straightforward machinery activation and testing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Green
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
VDE 0660
UL 508
CE
IEC/EN 60947
UL File No.: E29184
IEC/EN 60947-5
UL
CSA
CSA File No.: 46552
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
Features & Functions
General
IP65
NEMA 1
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Actuator
Momentary
