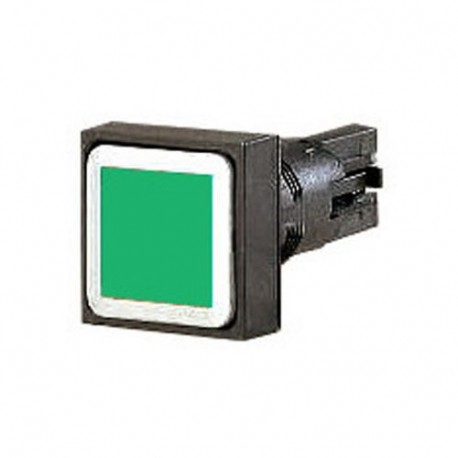

Q25DR-GN 088531 Y7-88531 EATON ELECTRIC Pushbutton, green, maintained
Q25DR-GN
088531
Y7-88531
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Q25DR-GN 088531 Y7-88531 EATON ELECTRIC Pushbutton, green, maintained operates as a compact panel-mounted control device designed for machinery and electrical enclosures. Maintained square pushbuttons hold their switched position until manually toggled back, making them suitable for continuous operational commands.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Green
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
CE
UL File No.: E29184
CSA-C22.2 No. 14-05
IEC/EN 60947-5
IEC/EN 60947
UL 508
UL Category Control No.: NKCR
CSA Class No.: 3211-03
CSA
VDE 0660
UL
Features & Functions
General
NEMA 1
NEMA 1
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Actuator
Maintained
