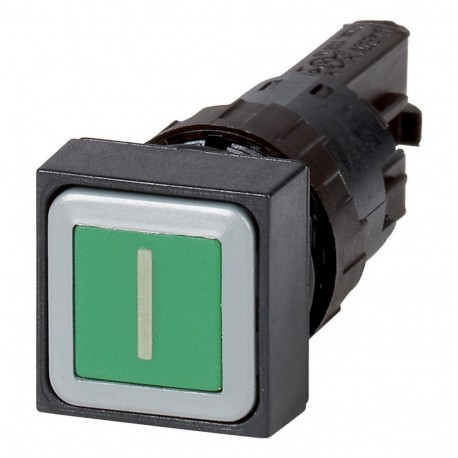

Q18D-11 086332 Y7-86332 EATON ELECTRIC Pushbutton, green I, momentary
Q18D-11
086332
Y7-86332
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller green labeled pushbutton, model Q18D-11, built for a 16 mm square hole cutout with momentary action. Compact pushbuttons are designed for installation on space-constrained control panels and small operator interfaces in machine building.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Green
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
UL 508
CSA-C22.2 No. 14-05
CSA File No.: 46552
UL
CSA
UL Category Control No.: NKCR
IEC/EN 60947-5
IEC/EN 60947
CSA Class No.: 3211-03
VDE 0660
UL File No.: E29184
Features & Functions
General
NEMA 1
IP65
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Actuator
Spring-return
