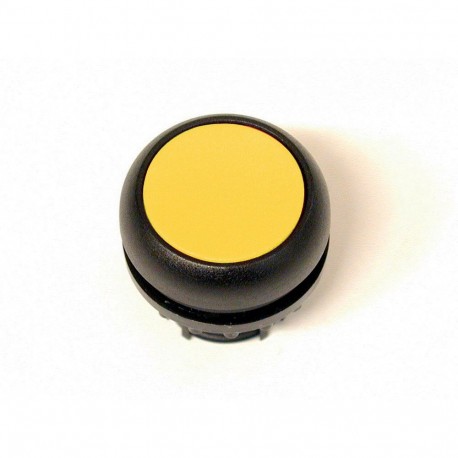

M22S-DR-Y 216622 Y7-216622 EATON ELECTRIC Pushbutton, flush, yellow, maintained
M22S-DR-Y
216622
Y7-216622
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22S-DR-Y pushbutton is a flat, maintained yellow control device used in industrial environments to signal specific operational states or hazard warnings on control panels. The maintained action keeps contacts engaged until manually toggled back.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Yellow
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
CSA File No.: 012528
UL 508
IEC/EN 60947
UL
CSA-C22.2 No. 94-91
UL File No.: E29184
VDE 0660
CE
IEC/EN 60947-5
DNV
GL
LR
