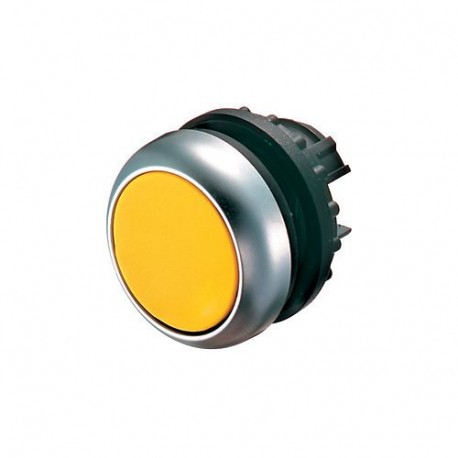

EATON - MOELLER M22-DR-Y M22-DR-Y 216621 Y7-216621 EATON ELECTRIC Pushbutton, flush, yellow, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DR-Y 216621 Y7-216621 EATON ELECTRIC Pushbutton, flush, yellow, maintained

M22-DR-Y

216621

Y7-216621

EATON - MOELLER

5 Pcs.

Pushbutton, flush, yellow, maintained M22-DR-Y Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Flat, maintained, yellow, Blank, Bezel: titanium Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, maintained, button plate: yellow, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller pushbutton acts as a panel-mounted operator interface element used to manually open or close electrical circuits in industrial systems. This yellow maintained device features a flat flush lens with a chrome front ring, offering a latching switching function for sustained operational modes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Yellow
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216621
Model Code
M22-DR-Y
EAN
4015082166212
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.011 kg
Compliances
CE Marked
Certifications
UL 508
CSA Std. C22.2 No. 94-91
IEC 60947-5
EN 60947-5
CSA Std. C22.2 No. 14-05
VDE
CE
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
CSA File No.: 012528
UL Category Control No.: NKCR
VDE 0660
CSA
IEC/EN 60947
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL
UL File No.: E29184
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
