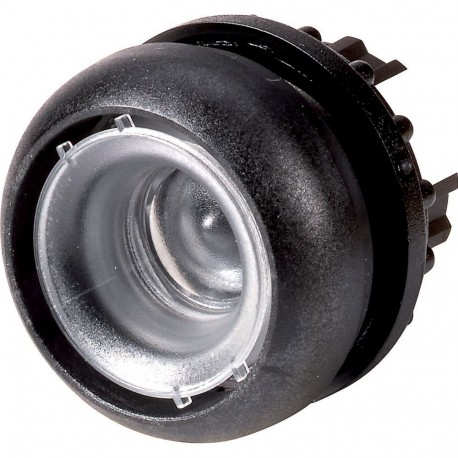

EATON - MOELLER M22S-D-X M22S-D-X 216604 Y7-216604 EATON ELECTRIC Pushbutton, flush, without button plate, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-D-X 216604 Y7-216604 EATON ELECTRIC Pushbutton, flush, without button plate, momentary

M22S-D-X

216604

Y7-216604

EATON - MOELLER

10 Pcs.

Pushbutton, flush, without button plate, momentary M22S-D-X Eaton Moeller® series M22 Pushbutton, RMQ-Titan, momentary, Without button plate, Bezel: black Pushbutton, Product range: RMQ-Titan, Single unit, momentary, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

M22S-D-X 216604 Y7-216604 EATON ELECTRIC Pushbutton, flush, without button plate, momentary from Eaton Moeller acts as a modular control actuator for industrial enclosures and operator consoles. Technicians can customize these unlabelled pushbuttons with specific inserts to match precise operational requirements in automated environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Without button plate
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216604
Model Code
M22S-D-X
EAN
4015082166045
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.009 kg
Certifications
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL 508
UL Category Control No.: NKCR
VDE 0660
CSA-C22.2 No. 14-05
CE
CSA Class No.: 3211-03
UL File No.: E29184
CSA
IEC/EN 60947
CSA File No.: 012528
UL
DNV
GL
LR
