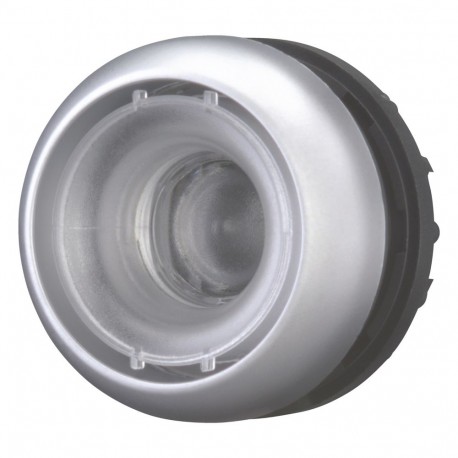

EATON - MOELLER M22-D-X M22-D-X 216602 Y7-216602 EATON ELECTRIC Pushbutton, flush, without button plate, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-D-X 216602 Y7-216602 EATON ELECTRIC Pushbutton, flush, without button plate, momentary

M22-D-X

216602

Y7-216602

EATON - MOELLER

1 Pcs.

Pushbutton, flush, without button plate, momentary M22-D-X Eaton Moeller® series M22 Pushbutton, RMQ-Titan, momentary, Without button plate, Bezel: titanium Pushbutton, Product range: RMQ-Titan, Single unit, momentary, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A modular pushbutton actuator allows system integrators to configure custom operator stations on industrial control panels by combining specific mechanical actuators with compatible electrical contact blocks. This component forms the physical interface for momentary manual inputs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Without button plate
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216602
Model Code
M22-D-X
EAN
4015082166021
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.009 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 14-05
EN 60947-5
CSA Std. C22.2 No. 94-91
UL 508
VDE
CSA-C22.2 No. 94-91
UL File No.: E29184
CSA File No.: 012528
CSA
IEC/EN 60947
CSA Class No.: 3211-03
IEC/EN 60947-5
CE
CSA-C22.2 No. 14-05
UL
UL Category Control No.: NKCR
VDE 0660
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
