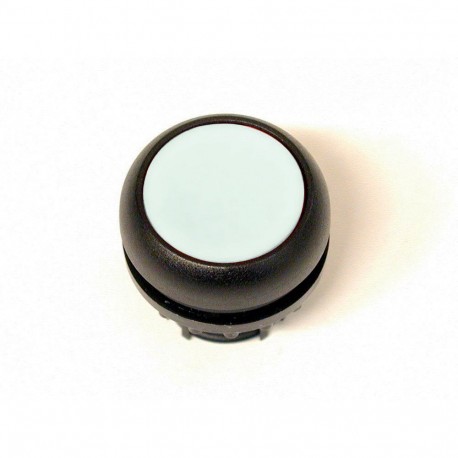

EATON - MOELLER M22S-DR-X M22S-DR-X 216627 Y7-216627 EATON ELECTRIC Pushbutton, flush, without button plate, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DR-X 216627 Y7-216627 EATON ELECTRIC Pushbutton, flush, without button plate, maintained

M22S-DR-X

216627

Y7-216627

EATON - MOELLER

1 Pcs.

Pushbutton, flush, without button plate, maintained M22S-DR-X Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Flat, maintained, Without button plate, Bezel: black Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, maintained, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216627
Model Code
M22S-DR-X
EAN
4015082166274
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.011 kg
Certifications
CE
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
CSA
CSA Class No.: 3211-03
UL 508
UL
IEC/EN 60947
CSA File No.: 012528
VDE 0660
UL File No.: E29184
CSA-C22.2 No. 94-91
IEC/EN 60947-5
DNV
GL
LR

ETIM for 216627 Low-voltage industrial controls and switchgear (EC000221)
Feature Name Feature Value
Colour button (EF000190) Without button plate
Number of command positions (EF001372) 1
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Type of button (EF001546) Flat
Suitable for lighting (EF001142) No
With protective cover (EF005500) No
Labelled (EF001537) No
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Black
Degree of protection (IP), front side (EF003118) IP67/IP69K
Degree of protection (NEMA), front side (EF011961) 4X
