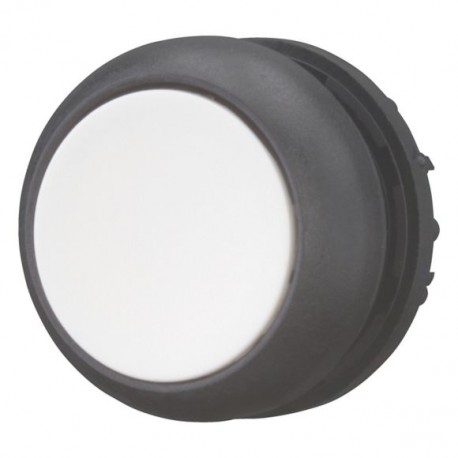

EATON - MOELLER M22S-D-W M22S-D-W 216593 Y7-216593 EATON ELECTRIC Pushbutton, flush, white, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-D-W 216593 Y7-216593 EATON ELECTRIC Pushbutton, flush, white, momentary

M22S-D-W

216593

Y7-216593

EATON - MOELLER

10 Pcs.

Pushbutton, flush, white, momentary M22S-D-W Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Flat, momentary, White, Blank, Bezel: black Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, momentary, button plate: White, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22S-D-W is a flush white momentary pushbutton utilized in general industrial automation and electrical distribution panels. These manual command units allow operators to interface with control logic and initiate standard operational sequences. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): White
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216593
Model Code
M22S-D-W
EAN
4015082165932
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.009 kg
Compliances
CE Marked
Bureau Veritas
GoST-R
Certifications
CSA Certified
CCC Marked
Lloyd's Register Certified
CSA
CSA-C22.2 No. 94-91
VDE 0660
CE
UL File No.: E29184
IEC/EN 60947-5
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
CSA File No.: 012528
IEC/EN 60947
UL
UL 508
DNV
GL
LR
Catalog Notes
Includes contact block mounting adapter.
