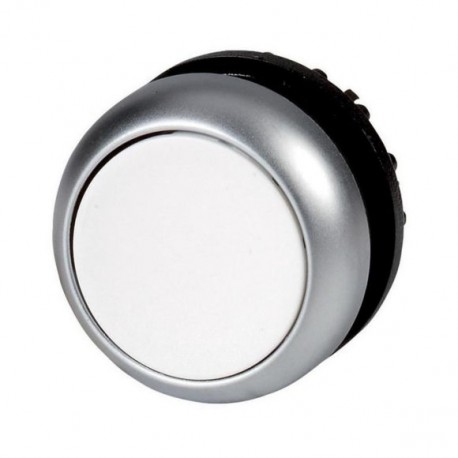

EATON - MOELLER M22-D-W M22-D-W 216592 Y7-216592 EATON ELECTRIC Pushbutton, flush, white, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-D-W 216592 Y7-216592 EATON ELECTRIC Pushbutton, flush, white, momentary

M22-D-W

216592

Y7-216592

EATON - MOELLER

1 Pcs.

Pushbutton, flush, white, momentary M22-D-W Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Flat, momentary, White, Blank, Bezel: titanium Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, momentary, button plate: White, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-D-W pushbutton serves as a fundamental interface element on control desks, distribution boards, and automation panels. Operators use momentary pushbuttons to send transient electrical signals for machine commands, system resets, and manual jogging routines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): White
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216592
Model Code
M22-D-W
EAN
4015082165925
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.009 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
EN 60947-5
UL 508
VDE
IEC/EN 60947
UL Category Control No.: NKCR
UL File No.: E29184
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
CE
CSA
UL
CSA File No.: 012528
IEC/EN 60947-5
VDE 0660
DNV
GL
LR
