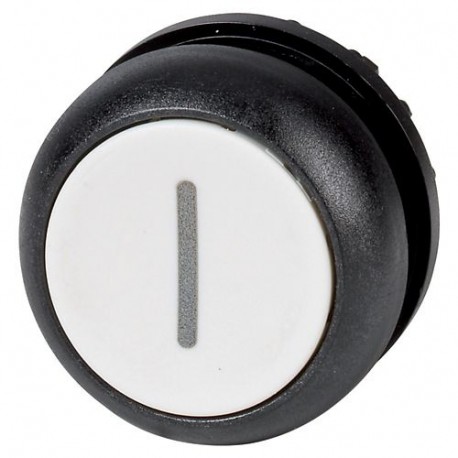

EATON - MOELLER M22S-DR-W-X1 M22S-DR-W-X1 216635 Y7-216635 EATON ELECTRIC Pushbutton, flush, white I, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DR-W-X1 216635 Y7-216635 EATON ELECTRIC Pushbutton, flush, white I, maintained

M22S-DR-W-X1

216635

Y7-216635

EATON - MOELLER

1 Pcs.

Pushbutton, flush, white I, maintained M22S-DR-W-X1 Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Flat, maintained, White, inscribed, Bezel: black Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, maintained, button plate: White, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22S-DR-W-X1 is a maintained flush pushbutton engineered for clear operational command input in industrial machinery and electrical distribution systems. Marked operator elements ensure plant personnel can quickly identify specific control functions during operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): White
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216635
Model Code
M22S-DR-W-X1
EAN
4015082166359
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.011 kg
Certifications
CE
IEC/EN 60947-5
UL Category Control No.: NKCR
VDE 0660
CSA File No.: 012528
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
IEC/EN 60947
UL
UL File No.: E29184
CSA-C22.2 No. 94-91
UL 508
CSA
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
