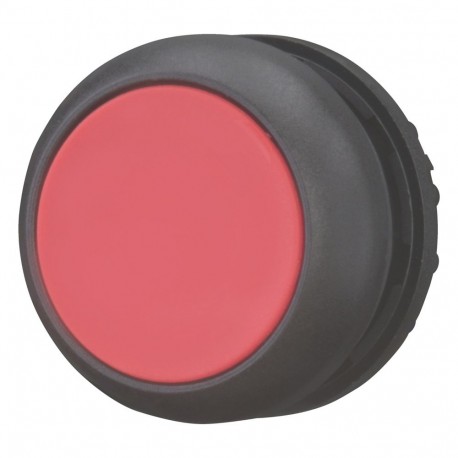

M22S-D-R 216595 Y7-216595 EATON ELECTRIC Pushbutton, flush, red, momentary
M22S-D-R
216595
Y7-216595
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22S-D-R is a flush red momentary pushbutton designed for standard control panel applications in industrial settings. Red actuators are universally deployed to trigger stop commands, fault resets, or emergency operational interventions. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
CSA File No.: 012528
IEC/EN 60947
IEC/EN 60947-5
VDE 0660
CSA
CE
CSA-C22.2 No. 94-91
UL 508
UL File No.: E29184
DNV
GL
LR
Features & Functions
Classical
General
NEMA 3R
NEMA 4X
NEMA 12
IP67
IP66
NEMA 13
NEMA 4X
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
With SWD-RMQ connections
Actuator
Momentary
