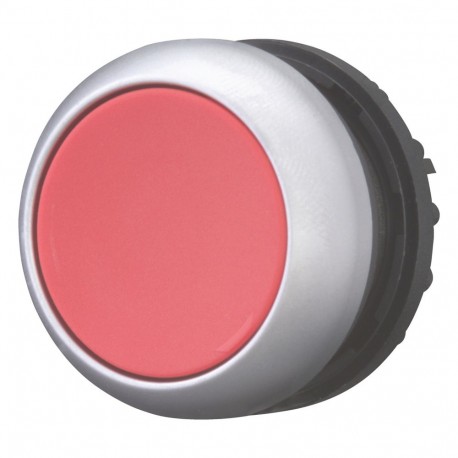

M22-D-R 216594 Y7-216594 EATON ELECTRIC Pushbutton, flush, red, momentary
M22-D-R
216594
Y7-216594
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The M22-D-R Eaton Moeller pushbutton provides essential manual control capabilities for electrical enclosures, machine interfaces, and automation panels. Spring-return momentary models instantly reset the electrical contact configuration the moment operator pressure is removed.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Name: Eaton Moeller® series M22 pushbutton
- Catalog Number: 216594
- Model Code: M22-D-R
- EAN: 4015082165949
- Product Length/Depth: 30 mm
- Product Height: 30 mm
- Product Width: 30 mm
- Product Weight: 0.009 kg
- Compliances: CE Marked
- Type: Pushbutton actuator
- Actuator color: Red
- Actuator function: Spring-return Momentary
- 10.10 Temperature rise: Not applicable.
- 10.2.2 Corrosion resistance: Meets the product standard's requirements.
- 10.2.3.1 Verification of thermal stability of enclosures: M22-D-R Eaton Moeller pushbutton provides essential manual control capabilities for electrical enclosures, machine interfaces, and automation panels. Spring-return momentary models instantly reset the electrical contact configuration the moment operator pressure is removed.
- 10.2.4 Resistance to ultra-violet (UV) radiation: Please enquire
More info
▲General specifications
| Product Name | Eaton Moeller® series M22 pushbutton |
| Catalog Number | 216594 |
| Model Code | M22-D-R |
| EAN | 4015082165949 |
| Product Length/Depth | 30 mm |
| Product Height | 30 mm |
| Product Width | 30 mm |
| Product Weight | 0.009 kg |
| Compliances | CE Marked |
| Certifications | UL 508 IEC 60947-5 EN 60947-5 CSA Std. C22.2 No. 14-05 CSA Std. C22.2 No. 94-91 VDE CSA CSA Class No.: 3211-03 CSA-C22.2 No. 14-05 IEC/EN 60947 IEC/EN 60947-5 UL Category Control No.: NKCR UL File No.: E29184 VDE 0660 CE CSA File No.: 012528 UL CSA-C22.2 No. 94-91 DNV GL LR |
Product specifications
| Type | Pushbutton actuator |
| Actuator color | Red |
| Actuator function | Spring-return Momentary |
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Fitted with: | Front ring |
| Operating frequency | 3600 Operations/h |
| Button color | Red |
| Climatic proofing | Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30 |
| Connection to SmartWire-DT | With SWD-RMQ connections Yes |
| Actuating force | 5 N |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -25 °C |
| Ambient storage temperature - max | 80 °C |
| Ambient storage temperature - min | 40 °C |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Force for positive opening - min | 0 N |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Number of command positions | 1 |
| Opening diameter | 22.5 mm |
| Opening height | 0 mm |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Bezel color | Titanium |
| Shock resistance | 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms Mechanical, According to IEC/EN 60068-2-27 |
| Bezel material | Plastic |
| Design | Flat Classical |
| Mounting position | As required |
| Degree of protection | IP66 IP67 IP69K NEMA 13 NEMA 4X NEMA 3R NEMA 12 |
| Degree of protection (front side) | IP67/IP69K NEMA 4X |
| Inscription | Blank |
| Front element type | Flat |
| Lens type | Round |
| Lifespan, mechanical | 5,000,000 Operations |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| Width opening | 0 mm |
| Product category | RMQ-Titan |
| Size | Front dimensions: 22 x 22 mm |
