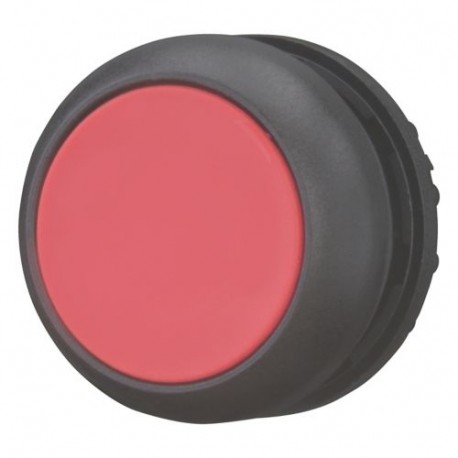

M22S-DR-R 216618 Y7-216618 EATON ELECTRIC Pushbutton, flush, red, maintained
M22S-DR-R
216618
Y7-216618
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The M22S-DR-R 216618 Y7-216618 EATON ELECTRIC Pushbutton, flush, red, maintained is a latching operator used in control stations to maintain a specific circuit condition until manually reset. Plant engineers utilize these devices for persistent stop or fault-indication functions on automated equipment.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
Bureau Veritas
CE Marked
Lloyd's Register Certified
CCC Marked
IEC/EN 60947
UL Category Control No.: NKCR
UL
CSA File No.: 012528
UL File No.: E29184
VDE 0660
CE
CSA
CSA Class No.: 3211-03
UL 508
CSA-C22.2 No. 94-91
IEC/EN 60947-5
CSA-C22.2 No. 14-05
DNV
GL
LR
Features & Functions
Classical
General
NEMA 4X
NEMA 3R
NEMA 13
IP69K
IP66
NEMA 12
IP67/IP69K
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Switching function latching
