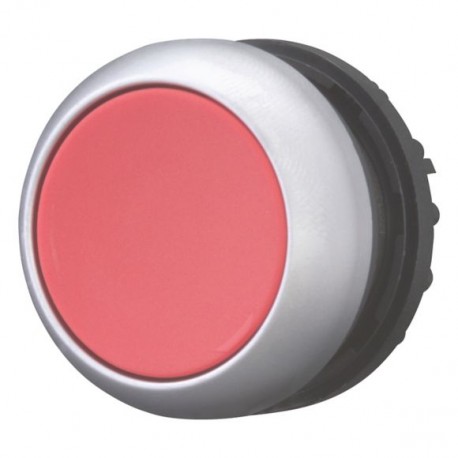

EATON - MOELLER M22-DR-R M22-DR-R 216617 Y7-216617 EATON ELECTRIC Pushbutton, flush, red, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DR-R 216617 Y7-216617 EATON ELECTRIC Pushbutton, flush, red, maintained

M22-DR-R

216617

Y7-216617

EATON - MOELLER

5 Pcs.

Pushbutton, flush, red, maintained M22-DR-R Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Flat, maintained, red, Blank, Bezel: titanium Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, maintained, button plate: red, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-DR-R 216617 Y7-216617 pushbutton is a flush-mounted control device designed for operator panels to initiate manual commands in machinery and automation systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216617
Model Code
M22-DR-R
EAN
4015082166175
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.011 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
EN 60947-5
UL 508
VDE
CSA Class No.: 3211-03
VDE 0660
CSA-C22.2 No. 94-91
IEC/EN 60947
UL File No.: E29184
UL
CE
IEC/EN 60947-5
CSA
UL Category Control No.: NKCR
CSA File No.: 012528
CSA-C22.2 No. 14-05
DNV
GL
LR
