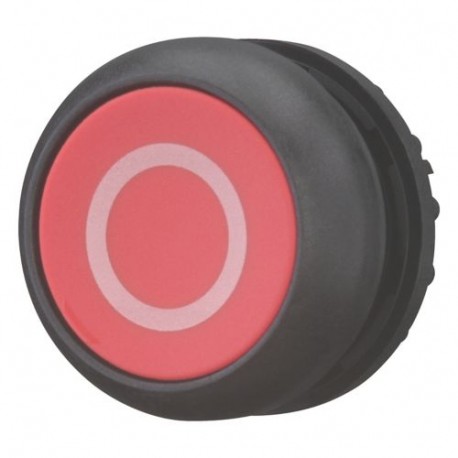

EATON - MOELLER M22S-D-R-X0 M22S-D-R-X0 216606 Y7-216606 EATON ELECTRIC Pushbutton, flush, red 0, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-D-R-X0 216606 Y7-216606 EATON ELECTRIC Pushbutton, flush, red 0, momentary

M22S-D-R-X0

216606

Y7-216606

EATON - MOELLER

10 Pcs.

Pushbutton, flush, red 0, momentary M22S-D-R-X0 Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Flat, momentary, red, inscribed, Bezel: black Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, momentary, button plate: red, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The M22S-D-R-X0 216606 Y7-216606 EATON ELECTRIC Pushbutton, flush, red 0, momentary from Eaton Moeller is an industrial control device used to signal stop or off commands on control panels. Momentary flush pushbuttons are standard across automated machinery for executing transient operator inputs safely and efficiently. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216606
Model Code
M22S-D-R-X0
EAN
4015082166069
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.009 kg
Certifications
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE
UL Category Control No.: NKCR
UL File No.: E29184
CSA
CSA Class No.: 3211-03
CSA File No.: 012528
UL
VDE 0660
IEC/EN 60947
IEC/EN 60947-5
UL 508
DNV
GL
LR
