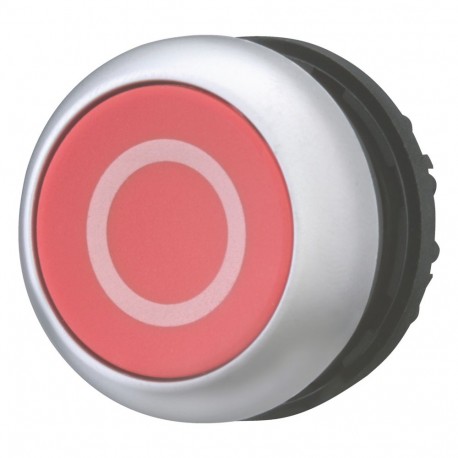

EATON - MOELLER M22-D-R-X0 M22-D-R-X0 216605 Y7-216605 EATON ELECTRIC Pushbutton, flush, red 0, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-D-R-X0 216605 Y7-216605 EATON ELECTRIC Pushbutton, flush, red 0, momentary

M22-D-R-X0

216605

Y7-216605

EATON - MOELLER

10 Pcs.

Pushbutton, flush, red 0, momentary M22-D-R-X0 Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Flat, momentary, red, inscribed, Bezel: titanium Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, momentary, button plate: red, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-D-R-X0 pushbutton offers reliable momentary control for industrial machinery, allowing operators to send stop or reset commands safely from a control panel. These red labeled actuators are standard components in electrical enclosures for halting operations or clearing system interlocks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216605
Model Code
M22-D-R-X0
EAN
4015082166052
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.009 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
UL 508
EN 60947-5
VDE
CSA
CSA-C22.2 No. 14-05
UL File No.: E29184
VDE 0660
UL
IEC/EN 60947
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
IEC/EN 60947-5
CE
CSA Class No.: 3211-03
CSA File No.: 012528
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
