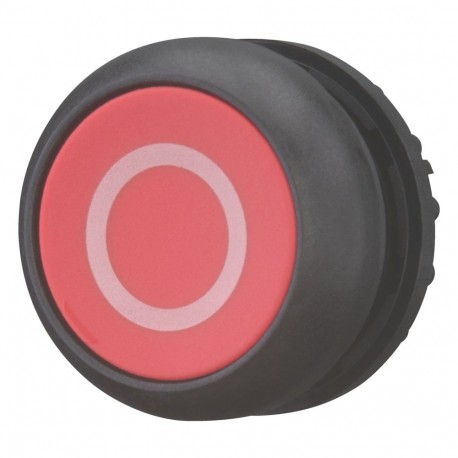

EATON - MOELLER M22S-DR-R-X0 M22S-DR-R-X0 216629 Y7-216629 EATON ELECTRIC Pushbutton, flush, red 0, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DR-R-X0 216629 Y7-216629 EATON ELECTRIC Pushbutton, flush, red 0, maintained

M22S-DR-R-X0

216629

Y7-216629

EATON - MOELLER

1 Pcs.

Pushbutton, flush, red 0, maintained M22S-DR-R-X0 Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Flat, maintained, red, inscribed, Bezel: black Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, maintained, button plate: red, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22S-DR-R-X0 is a maintained flush red pushbutton featuring a standard 0 marking for clear operational identification on control panels. Maintained switching devices hold their contact position until manually toggled back, making them suitable for power-off or stop routines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216629
Model Code
M22S-DR-R-X0
EAN
4015082166298
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.011 kg
Certifications
IEC/EN 60947
CE
CSA File No.: 012528
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
UL
UL 508
UL Category Control No.: NKCR
CSA Class No.: 3211-03
UL File No.: E29184
IEC/EN 60947-5
VDE 0660
CSA
DNV
GL
LR
