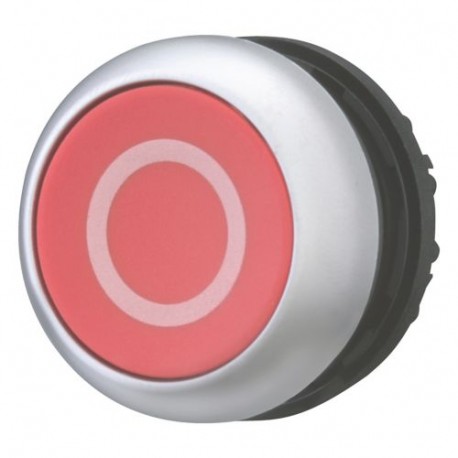

M22-DR-R-X0 216628 Y7-216628 EATON ELECTRIC Pushbutton, flush, red 0, maintained
M22-DR-R-X0
216628
Y7-216628
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller pushbutton serves as an essential interface element in automated machinery, allowing operators to send maintained control signals safely. Part number M22-DR-R-X0 features a flush red design suited for standard control console layouts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA File No.: 012528
IEC/EN 60947-5
UL 508
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
UL File No.: E29184
CE
UL
IEC/EN 60947
CSA-C22.2 No. 94-91
VDE 0660
CSA
DNV
GL
LR
