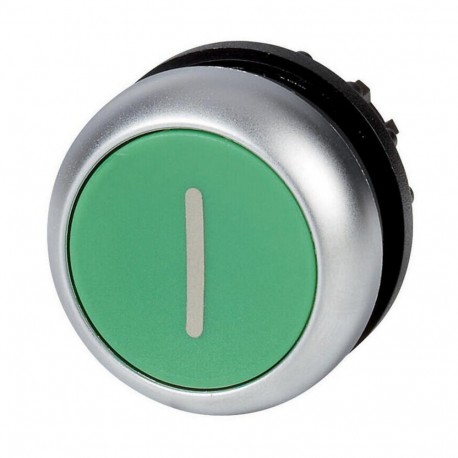

M22-DR-G-X1 216630 Y7-216630 EATON ELECTRIC Pushbutton, flush, green I, maintained
M22-DR-G-X1
216630
Y7-216630
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22-DR-G-X1 pushbutton is a maintained control device featuring clear operator labeling, used extensively in industrial automation to manage power states and operational modes on machinery. Technicians mount these units on standard control panel cutouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Green
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA-C22.2 No. 94-91
UL 508
CSA
UL Category Control No.: NKCR
UL
VDE 0660
CSA File No.: 012528
IEC/EN 60947-5
CSA Class No.: 3211-03
UL File No.: E29184
CE
IEC/EN 60947
DNV
GL
LR
