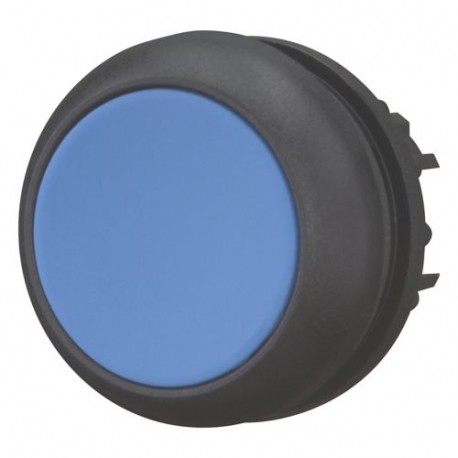

M22S-D-B 216601 Y7-216601 EATON ELECTRIC Pushbutton, flush, blue, momentary
M22S-D-B
216601
Y7-216601
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for standard industrial control panels, the Eaton Moeller M22S-D-B blue flush pushbutton offers momentary switching for general automation tasks. Momentary actuators immediately return to their rest position once released by the operator.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Blue
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
GoST-R
CE Marked
CCC Marked
Lloyd's Register Certified
CSA-C22.2 No. 94-91
CE
UL
CSA
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
CSA File No.: 012528
UL Category Control No.: NKCR
VDE 0660
IEC/EN 60947
IEC/EN 60947-5
UL 508
UL File No.: E29184
DNV
GL
LR
Features & Functions
Classical
General
NEMA 12
IP66
NEMA 4X
NEMA 3R
IP67
NEMA 13
NEMA 4X
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Spring-return
