View larger
Images are for illustrative purposes only. Please refer to data sheet for details

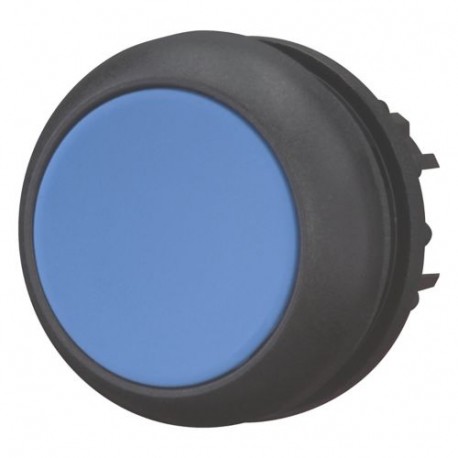

M22S-DR-B 216624 Y7-216624 EATON ELECTRIC Pushbutton, flush, blue, maintained
M22S-DR-B
216624
Y7-216624
EATON - MOELLER
1 Pcs.
Pushbutton, flush, blue, maintained
M22S-DR-B
Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Flat, maintained, Blue, Blank, Bezel: black
Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, maintained, button plate: Blue, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216624
Model Code
M22S-DR-B
EAN
4015082166243
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.011 kg
Certifications
IEC/EN 60947-5
UL 508
VDE 0660
CSA-C22.2 No. 94-91
UL
UL Category Control No.: NKCR
UL File No.: E29184
CSA
CSA Class No.: 3211-03
IEC/EN 60947
CSA-C22.2 No. 14-05
CE
CSA File No.: 012528
DNV
GL
LR
UL 508
VDE 0660
CSA-C22.2 No. 94-91
UL
UL Category Control No.: NKCR
UL File No.: E29184
CSA
CSA Class No.: 3211-03
IEC/EN 60947
CSA-C22.2 No. 14-05
CE
CSA File No.: 012528
DNV
GL
LR
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Blue |
| Number of command positions (EF001372) | 1 |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Type of button (EF001546) | Flat |
| Suitable for lighting (EF001142) | No |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | No |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Black |
| Degree of protection (IP), front side (EF003118) | IP67/IP69K |
| Degree of protection (NEMA), front side (EF011961) | 4X |
