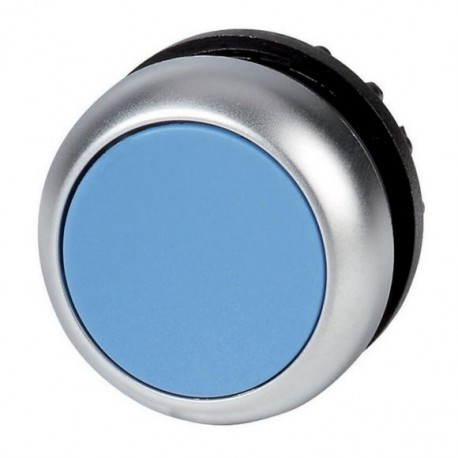

EATON - MOELLER M22-DR-B M22-DR-B 216623 Y7-216623 EATON ELECTRIC Pushbutton, flush, blue, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DR-B 216623 Y7-216623 EATON ELECTRIC Pushbutton, flush, blue, maintained

M22-DR-B

216623

Y7-216623

EATON - MOELLER

1 Pcs.

Pushbutton, flush, blue, maintained M22-DR-B Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Flat, maintained, Blue, Blank, Bezel: titanium Pushbutton, Product range: RMQ-Titan, Single unit, Design: Flat, maintained, button plate: Blue, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An M22-DR-B 216623 Y7-216623 EATON ELECTRIC Pushbutton, flush, blue, maintained acts as a latching operator switch on industrial control panels, retaining its contact position until intentionally toggled. This component is commonly utilized for auxiliary function control and system mode changes.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Blue
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216623
Model Code
M22-DR-B
EAN
4015082166236
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.011 kg
Compliances
CE Marked
Certifications
IEC 60947-5
UL 508
EN 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
VDE
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
CSA
CSA File No.: 012528
UL
VDE 0660
CSA-C22.2 No. 94-91
UL File No.: E29184
IEC/EN 60947
IEC/EN 60947-5
CE
UL Category Control No.: NKCR
DNV
GL
LR
