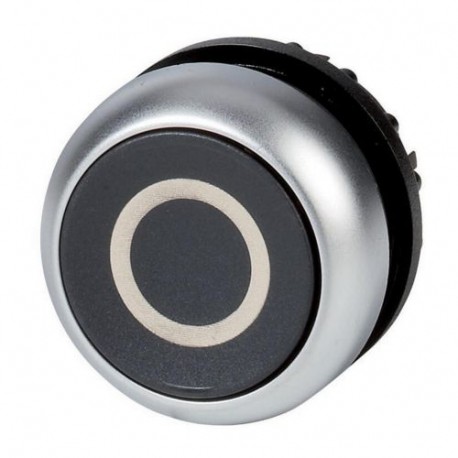

M22-D-S-X0 216609 Y7-216609 EATON ELECTRIC Pushbutton, flush, black 0, momentary
M22-D-S-X0
216609
Y7-216609
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22-D-S-X0 pushbutton is a reliable control device utilized across industrial machinery to govern electrical power and signal switching. Labeled with stop or zero indicators, these momentary operators manage critical shut-off or reset routines within automated production lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Black
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA Class No.: 3211-03
UL 508
UL Category Control No.: NKCR
IEC/EN 60947-5
UL
UL File No.: E29184
CSA File No.: 012528
CSA-C22.2 No. 14-05
CE
CSA-C22.2 No. 94-91
VDE 0660
IEC/EN 60947
DNV
GL
LR
Features & Functions
Classical
General
IP69K
IP66
NEMA 3R
NEMA 12
NEMA 4X
NEMA 13
IP67/IP69K
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Spring-return
