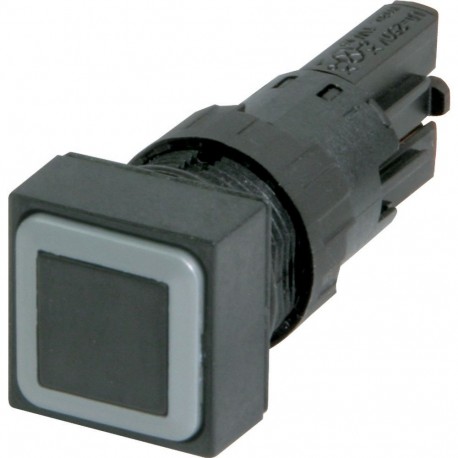

Q25D-SW 087230 Y7-87230 EATON ELECTRIC Pushbutton, black, momentary
Q25D-SW
087230
Y7-87230
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller Q25D-SW 087230 Y7-87230 EATON ELECTRIC Pushbutton, black, momentary serves as a manual operator input device utilized in control desks and automation enclosures. These components allow operators to interact with electrical control circuits safely and efficiently.
Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Black
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
CSA File No.: 46552
CE
CSA
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
IEC/EN 60947-5
UL
VDE 0660
IEC/EN 60947
UL 508
Features & Functions
General
NEMA 1
IP65
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Actuator
Momentary
