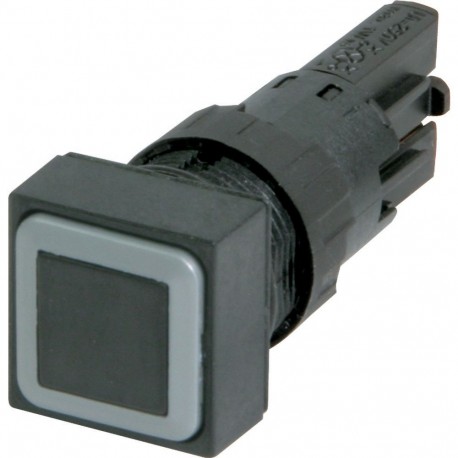

Q18D-SW 086788 Y7-86788 EATON ELECTRIC Pushbutton, black, momentary
Q18D-SW
086788
Y7-86788
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller Q18D-SW pushbutton is a compact control component designed for space-constrained industrial control panels, enabling operators to execute manual momentary switching tasks. These units are routinely embedded in custom machinery enclosures and operator interfaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Black
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
UL File No.: E29184
CSA Class No.: 3211-03
IEC/EN 60947
UL 508
UL
UL Category Control No.: NKCR
CSA File No.: 46552
VDE 0660
CE
CSA-C22.2 No. 14-05
CSA
Features & Functions
General
NEMA 1
IP65
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Actuator
Momentary
