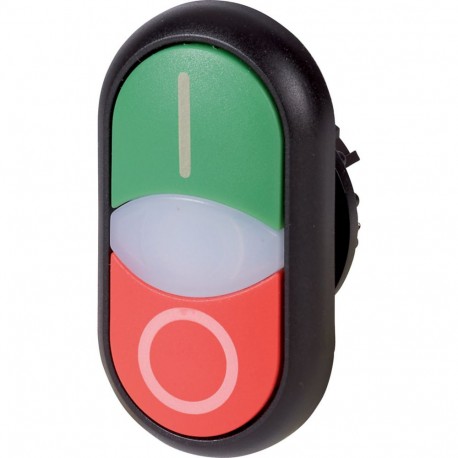

EATON - MOELLER M22S-DDLM-GR-X1/X0 M22S-DDLM-GR-X1/X0 284831 Y7-284831 EATON ELECTRIC Double actuator pushbutton, +indicator light, flush, gree.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DDLM-GR-X1/X0 284831 Y7-284831 EATON ELECTRIC Double actuator pushbutton, +indicator light, flush, gree..

M22S-DDLM-GR-X1/X0

284831

Y7-284831

EATON - MOELLER

1 Pcs.

Double actuator pushbutton, +indicator light, flush, green I, white, off switch raised red 0 M22S-DDLM-GR-X1/X0 Eaton Moeller® series M22 Double actuator pushbutton, RMQ-Titan, Pushbutton actuator I and indicator light flush, pushbutton actuator 0 non-flush, momentary, White lens, green, red, inscribed, Bezel: black Double actuator pushbutton, Product range: RMQ-Titan, Single unit, Design: Pushbutton actuator I and indicator light flush, pushbutton actuator 0 non-flush, momentary, Description: White lens, button plate: green, red, Button plate inscribed, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7 x 54,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22S-DDLM-GR-X1/X0 is a double actuator pushbutton featuring an integrated indicator light to save panel space while supporting dual control functions. These units are frequently employed on machine operation interfaces to manage start and stop sequences within a single mounting hole.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red/green
  • Number of command positions (EF001372): 2
  • Construction type lens (EF006253): Oval
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP66

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Double actuator pushbutton
Catalog Number
284831
Model Code
M22S-DDLM-GR-X1/X0
EAN
4015082848316
Product Length/Depth
30 mm
Product Height
55 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
IEC/EN 60947-5
CSA-C22.2 No. 94-91
IEC/EN 60947
UL 508
CSA-C22.2 No. 14-05
CE
VDE 0660
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
