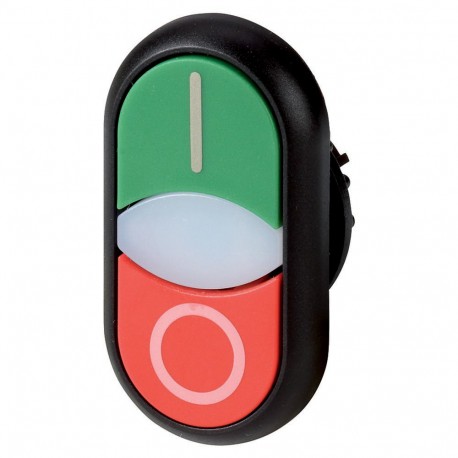

EATON - MOELLER M22S-DDLF-*-*-* M22S-DDLF-*-*-* 284819 Y7-284819 EATON ELECTRIC Double actuator pushbutton, +indicator light, flush, white ,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DDLF-*-*-* 284819 Y7-284819 EATON ELECTRIC Double actuator pushbutton, +indicator light, flush, white ,..

M22S-DDLF-*-*-*

284819

Y7-284819

EATON - MOELLER

1 Pcs.

Double actuator pushbutton, +indicator light, flush, white , white, black, facility for inscription M22S-DDLF-*-*-* Eaton Moeller® series M22 Double actuator pushbutton, RMQ-Titan, Actuators and indicator lights flush, momentary, White lens, selectable, individual facility for inscription, Bezel: black Double actuator pushbutton, Product range: RMQ-Titan, Single unit, Design: Actuators and indicator lights flush, momentary, Description: White lens, button plate: selectable, Button plate individual facility for inscription, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7 x 54,7, Ordering information: Notes on customized inscription → Data sheet, additional product information (links), Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller double actuator pushbutton with an integrated indicator light, part number M22S-DDLF-*-*-*, combines dual operator controls and optical signaling within a single panel cutout.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of command positions (EF001372): 2
  • Construction type lens (EF006253): Oval
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA), front side (EF011961): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Double actuator pushbutton
Catalog Number
284819
Model Code
M22S-DDLF-*-*-*
Product Length/Depth
30 mm
Product Height
55 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CE
UL 508
CSA-C22.2 No. 94-91
IEC/EN 60947
VDE 0660
DNV
GL
LR
Catalog Notes
Notes on customized inscription → Data sheet, additional product information (links)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
