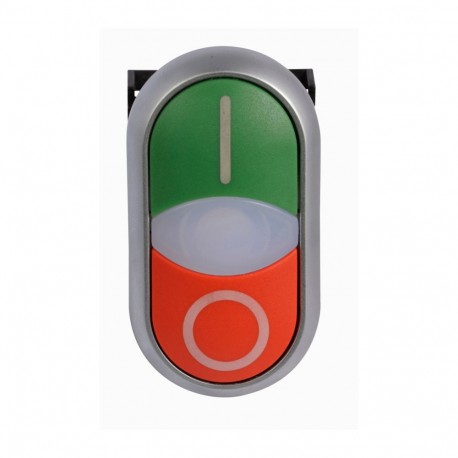

EATON - MOELLER M22-DDLM-WS-X1/X0 M22-DDLM-WS-X1/X0 284832 Y7-284832 EATON ELECTRIC Double actuator pushbutton, +indicator light, flush, white.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DDLM-WS-X1/X0 284832 Y7-284832 EATON ELECTRIC Double actuator pushbutton, +indicator light, flush, white..

M22-DDLM-WS-X1/X0

284832

Y7-284832

EATON - MOELLER

1 Pcs.

Double actuator pushbutton, +indicator light, flush, white I, white, off switch raised black 0 M22-DDLM-WS-X1/X0 Eaton Moeller® series M22 Double actuator pushbutton, RMQ-Titan, Pushbutton actuator I and indicator light flush, pushbutton actuator 0 non-flush, momentary, White lens, white, black, inscribed, Bezel: titanium Double actuator pushbutton, Product range: RMQ-Titan, Single unit, Design: Pushbutton actuator I and indicator light flush, pushbutton actuator 0 non-flush, momentary, Description: White lens, button plate: white, black, Button plate inscribed, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7 x 54,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

M22-DDLM-WS-X1/X0 284832 Y7-284832 EATON ELECTRIC Double actuator pushbutton, +indicator light, flush, white.. from Eaton Moeller acts as a dual-function control interface on industrial control panels. Engineers deploy these multi-actuator components on machine doors and consoles to save panel space while managing separate start and stop routines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Black and white
  • Number of command positions (EF001372): 2
  • Construction type lens (EF006253): Oval
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP66

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Double actuator pushbutton
Catalog Number
284832
Model Code
M22-DDLM-WS-X1/X0
EAN
4015082848323
Product Length/Depth
30 mm
Product Height
55 mm
Product Width
30 mm
Product Weight
0.015 kg
Compliances
Bureau Veritas
GoST-R
CE Marked
Certifications
CCC Marked
CSA Certified
Lloyd's Register Certified
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
IEC/EN 60947
IEC/EN 60947-5
CE
UL 508
VDE 0660
DNV
GL
LR
Catalog Notes
Includes contact block mounting adapter.
