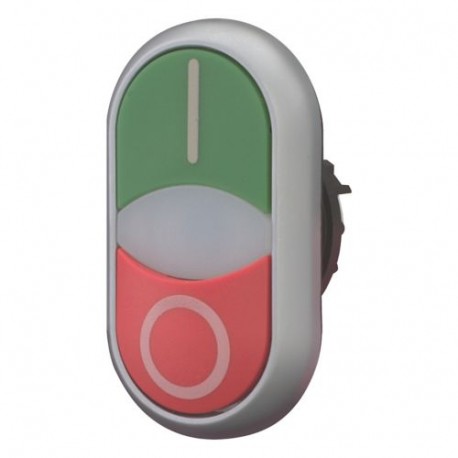

M22-DDLM-GR-X1/X0 284830 Y7-284830 EATON ELECTRIC Double actuator pushbutton, +indicator light, flush, green..
M22-DDLM-GR-X1/X0
284830
Y7-284830
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22-DDLM-GR-X1/X0 double actuator pushbutton integrates dual control functions and an indicator light in a single 22 mm panel cutout, saving space on industrial control panels. Dual operators allow streamlined start and stop control sequences.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red/green
- Number of command positions (EF001372): 2
- Construction type lens (EF006253): Oval
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
More info
▲General specifications
CSA-C22.2 No. 14-05
IEC/EN 60947
CSA-C22.2 No. 94-91
UL 508
CE
VDE 0660
DNV
GL
LR
Features & Functions
Classical
General
NEMA 12
NEMA 4X
NEMA 3R
NEMA 13
IP66
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Spring-return
