> EATON - MOELLER > Auxiliary Control and Signalling Elements > 216710

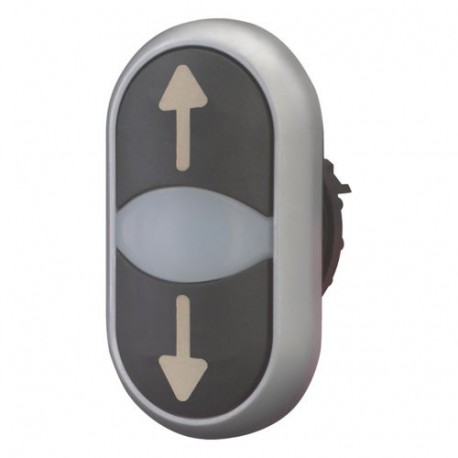

EATON - MOELLER M22-DDL-S-X7/X7 M22-DDL-S-X7/X7 216710 Y7-216710 EATON ELECTRIC Double actuator pushbutton, +indicator light, black/white/bl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DDL-S-X7/X7 216710 Y7-216710 EATON ELECTRIC Double actuator pushbutton, +indicator light, black/white/bl..

M22-DDL-S-X7/X7

216710

Y7-216710

EATON - MOELLER

1 Pcs.

Double actuator pushbutton, +indicator light, black/white/black, arrow symbol M22-DDL-S-X7/X7 Eaton Moeller® series M22 Double actuator pushbutton, RMQ-Titan, Actuators and indicator lights non-flush, momentary, White lens, black, black, inscribed, Bezel: titanium, arrow up Double actuator pushbutton, Product range: RMQ-Titan, Single unit, Design: Actuators and indicator lights non-flush, momentary, Description: White lens, button plate: black, black, Button plate inscribed, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7 x 54,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Double actuator pushbutton
Catalog Number
216710
Model Code
M22-DDL-S-X7/X7
EAN
4015082167103
Product Length/Depth
30 mm
Product Height
55 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
CE
UL
CSA File No.: 012528
UL File No.: E29184
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947
UL 508
CSA
CSA-C22.2 No. 14-05
VDE 0660
IEC/EN 60947-5
UL Category Control No.: NKCR
DNV
GL
LR

ETIM for 216710 Low-voltage industrial controls and switchgear (EC000221)
Feature Name Feature Value
Colour button (EF000190) Black
Number of command positions (EF001372) 2
Construction type lens (EF006253) Oval
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Type of button (EF001546) Flat
Suitable for lighting (EF001142) Yes
With protective cover (EF005500) No
Labelled (EF001537) Yes
Switching function latching (EF007447) No
Spring-return (EF001407) Yes
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Titanium
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA), front side (EF011961) 4X

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
