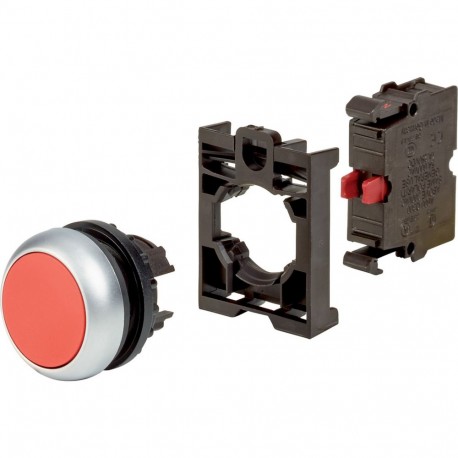

EATON - MOELLER M22-D-R-K01-BVP M22-D-R-K01-BVP 132618 Y7-132618 EATON ELECTRIC Pushbutton 1 N/C contact, complete device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-D-R-K01-BVP 132618 Y7-132618 EATON ELECTRIC Pushbutton 1 N/C contact, complete device

M22-D-R-K01-BVP

132618

Y7-132618

EATON - MOELLER

1 Pcs.

Pushbutton 1 N/C contact, complete device M22-D-R-K01-BVP Pushbutton, RMQ-Titan, flush, momentary, 1 NC, red Blister pack for hanging Pushbutton, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller complete pushbutton device integrates a mechanical actuator and factory-installed contact block for direct mounting into control console cutouts. Technicians deploy these pre-assembled units to quickly establish manual switching points in electrical control circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67

More info

▲
Pushbutton, RMQ-Titan, flush, momentary, 1 NC, red Blister pack for hanging
Pushbutton, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

General specifications
Product name
Eaton Moeller® series M22 Pushbutton
Part no.
M22-D-R-K01-BVP
EAN
4015081295630
Product Length/Depth
30 millimetre
Product height
210 millimetre
Product width
130 millimetre
Product weight
0.03 kilogram
Compliances
CE
Product Tradename
M22
Product Type
Pushbutton
Product Sub Type
None
Features & Functions
Bezel color
Titanium
Bezel material
Plastic
Fitted with:
Front ring
General information
Degree of protection (front side)
NEMA 4X
IP67
Opening diameter
22 mm
Actuator
Actuator color
Red
Actuator function
Spring-return

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Front element for push button (EC000221)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for push-button actuators (ecl@ss13-27-37-12-10 [AKF028019])
Colour button
Red
Number of command positions
1
Construction type lens
Round
Hole diameter
22 mm
Width opening
0 mm
Height opening
0 mm
Type of button
Flat
Suitable for illumination
No
With protective cover
No
Labelled
No
Switching function latching
No
Spring-return
Yes
With front ring
Yes
Material front ring
Plastic
Colour front ring
Titanium
Degree of protection (IP), front side
IP67
Degree of protection (NEMA), front side
4X

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
