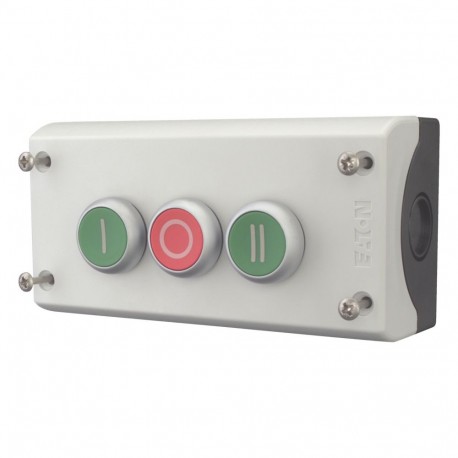

EATON - MOELLER M22-I3-M1 M22-I3-M1 216532 Y7-216532 EATON ELECTRIC Pushbutton actuator, 3N/O+3N/C, surface mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-I3-M1 216532 Y7-216532 EATON ELECTRIC Pushbutton actuator, 3N/O+3N/C, surface mounting

M22-I3-M1

216532

Y7-216532

EATON - MOELLER

1 Pcs.

Pushbutton actuator, 3N/O+3N/C, surface mounting M22-I3-M1 Eaton Moeller® series M22 Housing, Pushbutton actuators, Enclosure, momentary, 3 NC, 3 N/O, Screw connection, Number of locations 3, Grey, inscribed, Bezel: titanium Housing, Product range: RMQ-Titan, Complete unit, Design: Enclosure, momentary, Connection type: Screw connection, Number of locations: 3 Qty., Color Enclosure covers: Grey, Color RAL Value: RAL 7035, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 3 NC, Contacts N/O = Normally open: 3 N/O, Contacts Notes = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Front dimensions: 153 x 80, Standards: IEC/EN 60947, VDE 0660 , Mounting position: As required

Automation > Control circuit devices combination in enclosure
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-I3-M1 216532 Y7-216532 Pushbutton actuator, 3N/O+3N/C, surface mounting acts as an operator station housing multiple pushbuttons for manual command input on industrial control panels. These surface-mounted units allow operators to execute multiple control functions from a single ergonomic location.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of command positions (EF001372): 3
  • Number of push buttons (EF005558): 3
  • Number of indicator lights (EF001965): 0
  • Number of key switches (EF005590): 0
  • Number of selector switches (EF005567): 0
  • Number of mushroom-shaped push-buttons (EF006670): 0
  • Suitable for emergency stop (EF001433): No
  • Rated control supply voltage AC 50 Hz (EF003978): 115 V
  • Rated control supply voltage AC 60 Hz (EF003979): 115 V
  • Rated control supply voltage DC (EF003980): 24 V
  • Colour housing cover (EF001373): Grey
  • Housing colour (EF000136): Grey
  • Housing material (EF001596): Plastic
  • Number of contacts as normally open contact (EF008256): 2
  • Number of contacts as normally closed contact (EF008255): 2
  • Number of contacts as change-over contact (EF008257): 0

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Housing
Catalog Number
216532
Model Code
M22-I3-M1
EAN
4015082165321
Product Length/Depth
80 mm
Product Height
70 mm
Product Width
153 mm
Product Weight
0.333 kg
Certifications
IEC/EN 60947
CE
VDE 0660
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
UL
UL 508
CSA File No.: 012528
UL File No.: E29184
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
CSA
IEC/EN 60947-5
Catalog Notes
Contacts with safety function, by positive opening to IEC/EN 60947-5-1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
