EATON - MOELLER M22-I3-M2 M22-I3-M2 216533 Y7-216533 EATON ELECTRIC Pushbutton actuator, 2N/O+2N/C surface mounting, with LED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-I3-M2 216533 Y7-216533 EATON ELECTRIC Pushbutton actuator, 2N/O+2N/C surface mounting, with LED

M22-I3-M2

216533

Y7-216533

EATON - MOELLER

1 Pcs.

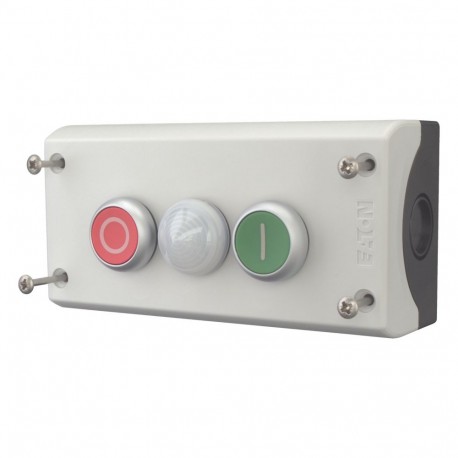

Pushbutton actuator, 2N/O+2N/C surface mounting, with LED M22-I3-M2 Eaton Moeller® series M22 Housing, Pushbutton actuators, Indicator lights, Enclosure, momentary, 2 NC, 2 N/O, Screw connection, Number of locations 2, Grey, inscribed, Bezel: titanium Housing, Product range: RMQ-Titan, Complete unit, Design: Enclosure, momentary, Connection type: Screw connection, Description: Indicator light, white, LED element, 85 - 264 V AC, Number of locations: 2 Qty., Color Enclosure covers: Grey, Color RAL Value: RAL 7035, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 2 NC, Contacts N/O = Normally open: 2 N/O, Contacts Notes = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15 , Front dimensions: 153 x 80, Standards: IEC/EN 60947, VDE 0660, Mounting position: As required

Automation > Control circuit devices combination in enclosure
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-I3-M2 pushbutton actuator station with integrated LED lighting provides visible status feedback and multi-button control for industrial machinery. These surface-mounted operator enclosures are widely integrated into control architectures to facilitate user commands and process monitoring.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of command positions (EF001372): 3
  • Number of push buttons (EF005558): 2
  • Number of indicator lights (EF001965): 1
  • Number of key switches (EF005590): 0
  • Number of selector switches (EF005567): 0
  • Number of mushroom-shaped push-buttons (EF006670): 0
  • Suitable for emergency stop (EF001433): No
  • Rated control supply voltage AC 50 Hz (EF003978): 85 V
  • Rated control supply voltage AC 60 Hz (EF003979): 85 V
  • Rated control supply voltage DC (EF003980): 0 V
  • Colour housing cover (EF001373): Grey
  • Housing colour (EF000136): Grey
  • Housing material (EF001596): Plastic
  • Number of contacts as normally open contact (EF008256): 2
  • Number of contacts as normally closed contact (EF008255): 2
  • Number of contacts as change-over contact (EF008257): 0

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Housing
Catalog Number
216533
Model Code
M22-I3-M2
EAN
4015082165338
Product Length/Depth
80 mm
Product Height
70 mm
Product Width
153 mm
Product Weight
0.317 kg
Certifications
CSA
CSA Class No.: 3211-03
CSA File No.: 012528
CSA-C22.2 No. 94-91
CE
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947
IEC/EN 60947-5
UL
UL 508
UL File No.: E29184
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
