EATON - MOELLER M22-I2-M1 M22-I2-M1 216529 Y7-216529 EATON ELECTRIC Pushbutton actuator, 2N/O+2N/C, surface mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-I2-M1 216529 Y7-216529 EATON ELECTRIC Pushbutton actuator, 2N/O+2N/C, surface mounting

M22-I2-M1

216529

Y7-216529

EATON - MOELLER

1 Pcs.

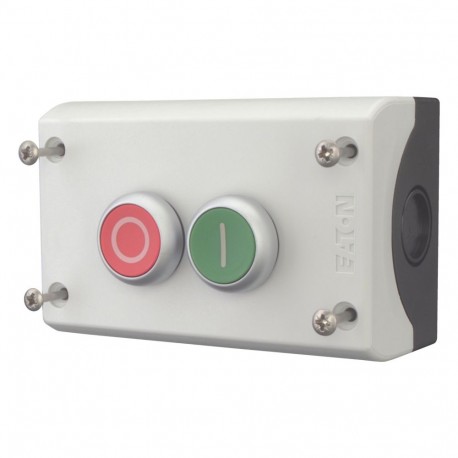

Pushbutton actuator, 2N/O+2N/C, surface mounting M22-I2-M1 Eaton Moeller® series M22 Housing, Pushbutton actuators, Enclosure, momentary, 2 NC, 2 N/O, Screw connection, Number of locations 2, Grey, inscribed, Bezel: titanium Housing, Product range: RMQ-Titan, Complete unit, Design: Enclosure, momentary, Connection type: Screw connection, Number of locations: 2 Qty., Color Enclosure covers: Grey, Color RAL Value: RAL 7035, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 2 NC, Contacts N/O = Normally open: 2 N/O, Contacts Notes = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Front dimensions: 120 x 80, Standards: IEC/EN 60947, VDE 0660 , Mounting position: As required

Automation > Control circuit devices combination in enclosure
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A pushbutton actuator, 2N/O+2N/C, surface mounting unit from Eaton Moeller delivers complete surface-mounted operator control with integrated contact blocks for machinery management. Surface-mounted control stations provide convenient installation on machine frames where built-in panel mounting is not feasible. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of command positions (EF001372): 2
  • Number of push buttons (EF005558): 2
  • Number of indicator lights (EF001965): 0
  • Number of key switches (EF005590): 0
  • Number of selector switches (EF005567): 0
  • Number of mushroom-shaped push-buttons (EF006670): 0
  • Suitable for emergency stop (EF001433): No
  • Rated control supply voltage AC 50 Hz (EF003978): 115 V
  • Rated control supply voltage AC 60 Hz (EF003979): 115 V
  • Rated control supply voltage DC (EF003980): 24 V
  • Colour housing cover (EF001373): Grey
  • Housing colour (EF000136): Grey
  • Housing material (EF001596): Plastic
  • Number of contacts as normally open contact (EF008256): 2
  • Number of contacts as normally closed contact (EF008255): 2
  • Number of contacts as change-over contact (EF008257): 0

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Housing
Catalog Number
216529
Model Code
M22-I2-M1
EAN
4015082165291
Product Length/Depth
80 mm
Product Height
70 mm
Product Width
120 mm
Product Weight
0.255 kg
Compliances
CE Marked
Certifications
IEC 60947-5
UL 508
EN 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
VDE
IEC/EN 60947-5
VDE 0660
CE
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CSA
CSA Class No.: 3211-03
UL Category Control No.: NKCR
UL File No.: E29184
CSA File No.: 012528
IEC/EN 60947
UL
Catalog Notes
Contacts with safety function, by positive opening to IEC/EN 60947-5-1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
