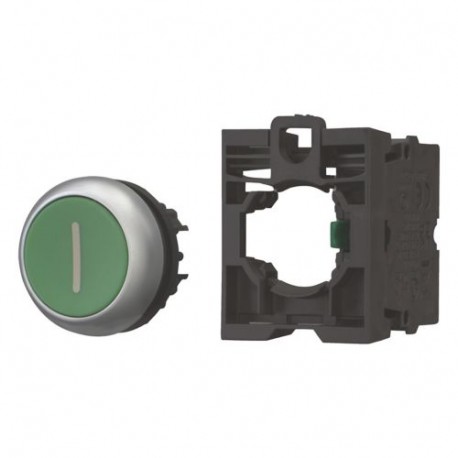

EATON - MOELLER M22-D-G-X1/K10 M22-D-G-X1/K10 216512 Y7-216512 EATON ELECTRIC Pushbutton actuator, 1N/O, flush, green, front mount View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-D-G-X1/K10 216512 Y7-216512 EATON ELECTRIC Pushbutton actuator, 1N/O, flush, green, front mount

M22-D-G-X1/K10

216512

Y7-216512

EATON - MOELLER

5 Pcs.

Pushbutton actuator, 1N/O, flush, green, front mount M22-D-G-X1/K10 Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Flat, momentary, 1 N/O, green, inscribed, Bezel: titanium Pushbutton, RMQ-Titan, Complete unit, Design: Flat, momentary, Connection type: Screw connection, button plate: green, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: no, N/O = Normally open: 1 N/O, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660

Automation > Push button, complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A standard flat pushbutton actuator, the Eaton Moeller M22-D-G-X1/K10 is utilized extensively in industrial automation for basic manual signal generation and machine control logic. Panel builders mount these spring-return buttons into standard enclosures to interface operators directly with PLC input circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of command positions (EF001372): 1
  • Type of button (EF001546): Flat
  • Colour button (EF000190): Green
  • Transparent (EF006243): No
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Suitable for lighting (EF001142): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • Supply voltage lamp (EF006522): 0 V
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Type of electric connection (EF003961): Screw connection

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216512
Model Code
M22-D-G-X1/K10
EAN
4015082165123
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.026 kg
Certifications
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL
UL Category Control No.: NKCR
UL File No.: E29184
CE
CSA Class No.: 3211-03
CSA
CSA-C22.2 No. 14-05
IEC/EN 60947
VDE 0660
CSA File No.: 012528
UL 508
DNV
GL
LR
