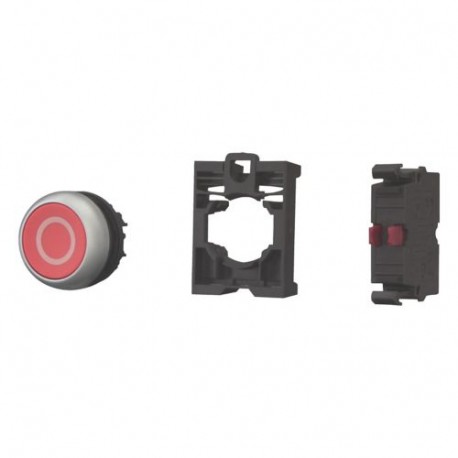

M22-D-R-X0/K01 216510 Y7-216510 EATON ELECTRIC Pushbutton actuator, 1N/C flush, red, front mount
M22-D-R-X0/K01
216510
Y7-216510
EATON - MOELLER
5 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Featuring front-mounting capability, the Eaton Moeller M22-D-R-X0/K01 pushbutton actuator delivers dependable circuit interruption for safety and control loops. Panel builders incorporate red flush pushbuttons with normally closed contacts into machine interfaces to halt processes or disconnect power pathways. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): Red
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- Supply voltage lamp (EF006522): 0 V
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 1
- Number of contacts as change-over contact (EF008257): 0
- Type of electric connection (EF003961): Screw connection
More info
▲General specifications
IEC/EN 60947-5
UL 508
VDE 0660
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
UL
UL Category Control No.: NKCR
CSA Class No.: 3211-03
IEC/EN 60947
UL File No.: E29184
CSA
CSA File No.: 012528
DNV
GL
LR
Features & Functions
Classical
General
IP67/IP69K
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Short-circuit rating
Communication
Actuator
Momentary
