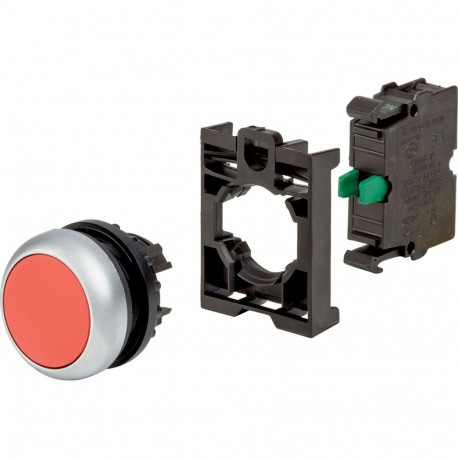

EATON - MOELLER M22-D-R-K10-BVP M22-D-R-K10-BVP 110935 Y7-110935 EATON ELECTRIC Pushbutton 1S, complete device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-D-R-K10-BVP 110935 Y7-110935 EATON ELECTRIC Pushbutton 1S, complete device

M22-D-R-K10-BVP

110935

Y7-110935

EATON - MOELLER

1 Pcs.

Pushbutton 1S, complete device M22-D-R-K10-BVP Eaton Moeller® series M22 Pushbutton, RMQ-Titan, flush, momentary, 1 NO, red, Blister pack for hanging Pushbutton, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-D-R-K10-BVP complete pushbutton device provides a ready-to-install operator interface for industrial machinery, control panels, and automation switchgear. These units enable personnel to safely initiate momentary electrical commands within automated workflows.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
110935
Model Code
M22-D-R-K10-BVP
EAN
4015081104642
Product Length/Depth
50 mm
Product Height
80 mm
Product Width
50 mm
Product Weight
0.025 kg
Compliances
CE
Certifications
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
