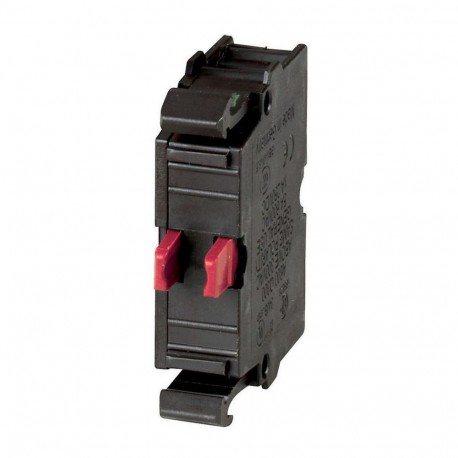

M22-D-G-K10-BVP 110934 Y7-110934 EATON ELECTRIC Pushbutton 1S, complete device
M22-D-G-K10-BVP
110934
Y7-110934
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
M22-D-G-K10-BVP Eaton Moeller pushbutton is a complete control device implemented within electrical switchgear and machinery dashboards for manual command inputs. Panel builders utilize these units to complete control circuits and interface directly with automated production lines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Green
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP67
