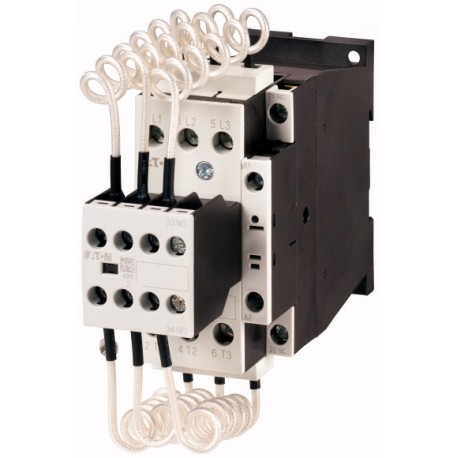

DILK20-11(*V60HZ) 294020 EATON ELECTRIC Protection for 3ph three-phase capacitors, 20kVAR
DILK20-11(*V60HZ)
294020
-
EATON - MOELLER
10 Pcs.
Automation > Capacitor contactor
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller DILK20-11(*V60HZ) protection contactor for 3ph three-phase capacitors handles central compensation tasks in demanding electrical environments. The unit incorporates dedicated pre-charging circuits to absorb high transient current peaks during routine capacitor bank activation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: DILK20-11(*V60HZ)
- Catalogue code: 294020
- Catalogue title: DILK20-11(*V60HZ) 294020 EATON ELECTRIC Protection for 3ph three-phase capacitors, 20kVAR
- Product description: Contactor for capacitors, with series resistors, 20 kVAr, *V 60 Hz For switching in central compensation systems with 180-fold transient peaks. The capacitors are pre-charged via the early-make auxiliary contacts and the
- Manufacturer summary: Protection for 3ph three-phase capacitors, 20kVAR Contactor for capacitor; Connection; screw; 3 poles; 20 KVar; 400 V; * V 60 Hz Contactor for capacitors, with series resistors, 20 kVAr, *V 60 Hz
More info
▲Delivery program
The capacitors are pre-charged via the early-make auxiliary contacts and the fitted wire resistors, thereby reducing the inrush current. The main contacts then close in a time-delayed manner and bring about the continuous current. Due to their special contacts, the contactors for the capacitors are weld-resistant for capacitors with inrush current peaks
Due to their special contacts, the contactors for capacitors are weld-resistant for capacitors with inrush current peaks up to 180 × le.
