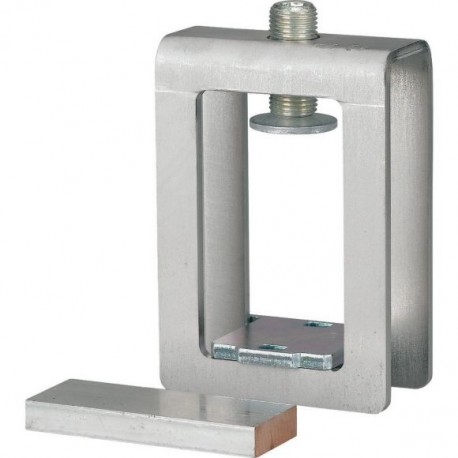

AKP800 107198 Y7-107198 EATON ELECTRIC Profile terminal 41x20-42

AKP800

107198

Y7-107198

EATON - MOELLER

1 Pcs.

Profile terminal 41x20-42 AKP800 Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Profile terminal 41x20-42 Profile terminal, termination to busbars without drilling, put a spacer between the laminated copper busbars when connecting in parallel, 800mm², terminal area, 41x20-42, width 72mm, Ie=1600 A, can be used for double T profile, 60 mm system, 185 mm system

Automation > Busbar terminal
Connection Accessories for Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A profile terminal is utilized in electrical switchgear assemblies to secure conductors and provide a stable mounting interface on structural rail systems. The Eaton Moeller profile terminal provides robust mechanical connection capacity for high-current distribution setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Busbar thickness (EF007220): 40 mm
  • Busbar width (EF007219): 30 mm
  • Suitable for (EF000073): T-rail
  • Width clamp (EF007092): 72 mm
  • Max. conductor cross section (EF004969): 800 mm²
  • Max. rated operation current Ie (EF007356): 1600 A
  • Suitable for round conductor connection (EF007258): No
  • Suitable for sector conductor connection (EF007260): No
  • Suitable for strip conductor connection (EF007242): Yes

More info

▲

General specifications

Product Name
Eaton xEffect SASY 60i busbar terminal
Catalog Number
107198
Model Code
AKP800
EAN
4015081069613
Product Length/Depth
72 mm
Product Height
118 mm
Product Width
45 mm
Product Weight
0.66 kg
Compliances
UL CSA09 (refer to approbation report)
RoHS conform
Certifications
North America (UL listed, CSA certified)
CE marking
CSA-C22.2 No. 14
CSA (Class No. 3211-37)
UL (Category Control Number NMTR2, NMTR8)
UL (File No. E307559)
IEC 60439-1
CSA (File No. 236217)
UL508A

Delivery program

Type

Technical data - electrical

Voltage rating (UL CSA 13)
Max. 600 V AC
Rated operation current (Ie)
1600 A
Rated operational current
1600 A
Rated operational current (Ie) - max
1600 A

Technical data - mechanical

Degree of protection
UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking
Feeder circuits
Busbar thickness - min
40 mm
Busbar thickness - max
40 mm
Busbar width - min
30 mm
Busbar width - max
30 mm
Terminal capacity (conductor)
800 mm² (Cu band)
20 mm - 42 mm (41x)
Conductor cross section - max
800 mm²
Width clamp
72 mm

Additional information

Functions
Current limiting circuit breaker, refer to approbation report
Connections
Profile terminal
Special features
  • Termination to busbars without drilling
  • Put a spacer between the laminated copper busbars when connecting in parallel
Suitable for
Strip conductor connection
T-rail
Used with
Feeder circuits
Double T profile
Connection
185 mm system
60 mm system

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
