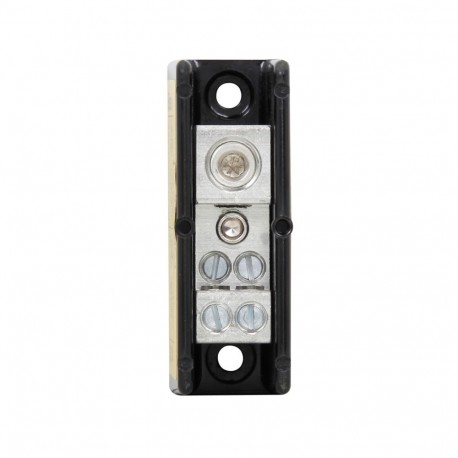

EATON - MOELLER POWER TERMINAL BLOCK 48PK POWER TERMINAL BLOCK 48PK 16220-1 EATON ELECTRIC Terminal block, BT, 175 A, AC 600 V, DC 600 V, 1P, UL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

POWER TERMINAL BLOCK 48PK 16220-1 EATON ELECTRIC Terminal block, BT, 175 A, AC 600 V, DC 600 V, 1P, UL

POWER TERMINAL BLOCK 48PK

162201

16220-1

EATON - MOELLER

1 Pcs.

Terminal block, BT, 175 A, AC 600 V, DC 600 V, 1P, UL POWER TERMINAL BLOCK 48PK Terminal block, low voltage, 175 A, AC 600 V, DC 600 V, 200 kA, 1P, UL, Distribution type, 4-way per pole

Connectors > Fuse switch disconnector
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a power terminal block, the Eaton Moeller POWER TERMINAL BLOCK 48PK simplifies electrical feed distribution within industrial control enclosures. Such modular blocks facilitate organized multi-tap connections from a main incoming power source. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: POWER TERMINAL BLOCK 48PK
  • Catalogue code: 162201
  • Catalogue title: POWER TERMINAL BLOCK 48PK 16220-1 EATON ELECTRIC Terminal block, BT, 175 A, AC 600 V, DC 600 V, 1P, UL
  • Product description: Terminal block, low voltage, 175 A, AC 600 V, DC 600 V, 200 kA, 1P, UL, Distribution type, 4-way per pole Power distribution, Terminal block, low voltage, 175 A, AC 600 V, DC 600 V, 1P, UL, Distribution type, 4-way per p
  • Manufacturer summary: Terminal block, BT, 175 A, AC 600 V, DC 600 V, 1P, UL POWER TERMINAL BLOCK 48PK Terminal block, low voltage, 175 A, AC 600 V, DC 600 V, 200 kA, 1P, UL, Distribution type, 4-way per pole

More info

▲
Terminal block, low voltage, 175 A, AC 600 V, DC 600 V, 200 kA, 1P, UL, Distribution type, 4-way per pole
Power distribution, Terminal block, low voltage, 175 A, AC 600 V, DC 600 V, 1P, UL, Distribution type, 4-way per pole, UL, CSA, Breaking Capacity 200 kA, Thermoplastic, Optional accessories CPB162-1 cover

Delivery program

Product range
Power distribution
Basic function
Terminal block
Field of application
low voltage
Rated current [I]
175 A
Rated voltage
AC 600 V
DC 600 V
Description
Distribution type
4-way per pole
Breaking Capacity
200 kA
Number of poles
1P
usable for size/applications
Power Distribution
Standard/Approval
UL
Material
Thermoplastic
Standards/Regulations
UL
CSA
Optional accessories
CPB162-1 cover

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Distribution terminal block (EC000276)
Electric engineering, automation, process control engineering / Electrical installation, device / Terminal (not overhead line) / Control line board ([email protected] [BAA026013])
Core cross section
67 mm²
Number of poles
1
With seal head
No
