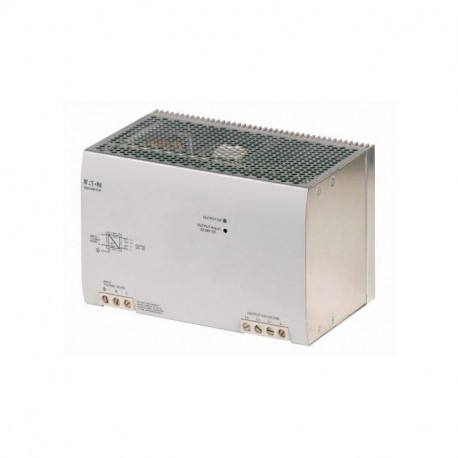

EATON - MOELLER SN3-200-EU8 SN3-200-EU8 100645 EATON ELECTRIC Switched-mode power supply unit, 24-28VDC, adjustable, 20A, max. 5 devices.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SN3-200-EU8 100645 EATON ELECTRIC Switched-mode power supply unit, 24-28VDC, adjustable, 20A, max. 5 devices..

SN3-200-EU8

100645

EATON - MOELLER

1 Pcs.

Switched-mode power supply unit, 24-28VDC, adjustable, 20A, max. 5 devices switched parallel Primary pulsed switched-mode power supply unit, input voltage range:85-264VAC or 100-350VDC, output voltage 22-28VDC adjustable, rated output current 20A, power reserves up to 50%, up to 5 devices can be paralleled to increase power and for redundancy, high efficiency up to 90%

Automation > PLC system power supply

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller SN3-200-EU8 is a switched-mode power supply unit engineered to provide adjustable, high-capacity voltage output for heavy-duty industrial control applications. Switched-mode power supplies efficiently convert incoming utility power into stable DC levels required by complex automation networks, drives, and control panels.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Input voltage AC 50 Hz (EF007118): 85 V
  • Input voltage DC (EF007120): 100 V
  • Output voltage DC (EF007001): 22 V
  • Max. output current AC 50 Hz (EF007351): 20 A
  • Redundancy (EF003156): No
  • Suitable for safety functions (EF001597): No
  • Width (EF000008): 200 mm
  • Height (EF000040): 130 mm
  • Depth (EF000049): 130 mm

More info

▲
Fuse-link, LV, 200 A, AC 600 V, 38 x 146 mm, J, UL, fast acting
Fuse, fuse-link, low voltage, 200 A, AC 600 V, 38 x 146 mm, Class J, UL, fast acting, ideal for critical industrial or commercial applications that have specific current limitation requirements. Breaking capacity 200 kA
[

Delivery program

Product range
Fuse
Basic function
Fuse-link
Field of application
low voltage
Rated current [I]
200 A
Rated voltage
AC 600 V
Size
38 x 146 mm
Utilization category
J
Breaking Capacity
200 kA
usable for size/applications
ideal for critical industrial or commercial applications that have specific current limitation requirements
Release characteristic [class]
fast-acting
Standard/Approval
UL
,

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
Other
Rated current
200 A
Rated voltage
600 V
Voltage type
AC
Rated switching capacity
200 kA
Utilization category
Other
Type of fuse status indicator
None
Insulated metal gripping lugs (IMGL)
No
]

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
