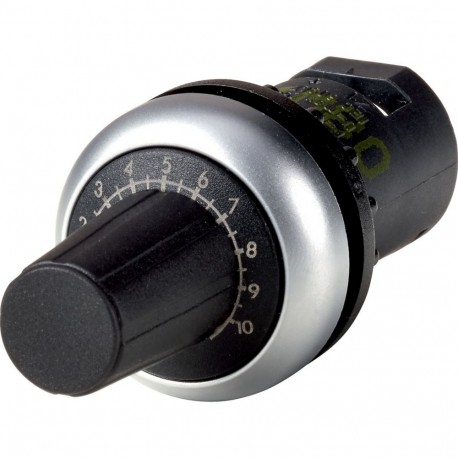

M22-R*-*-RH 288863 Y7-288863 EATON ELECTRIC Potentiometer, robust handling, value according to data
M22-R*-*-RH
288863
Y7-288863
EATON - MOELLER
1 Pcs.
Automation > Potentiometer for command devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for robust mechanical handling, the Eaton Moeller M22-R*-*-RH potentiometer provides reliable manual setpoint adjustment in harsh environments. Operators rely on front-panel rotary controls to alter process variables, reference speeds, and system limits dynamically. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Resistance (EF002431): 0 Ohm
- Power consumption (EF000346): 0.5 W
- Hole diameter (EF000079): 22.5 mm
- Number of revolutions (EF006943): 1
- Type of electric connection (EF003961): Screw connection
- Degree of protection (IP) (EF005474): IP66
More info
▲General specifications
IEC/EN 60947-5
CE
CSA-C22.2 No. 14-05
UL
IEC/EN 60947
UL 508
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
CSA
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
Features & Functions
Large operating head
General
NEMA Other
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
Electrical rating
Configurable
