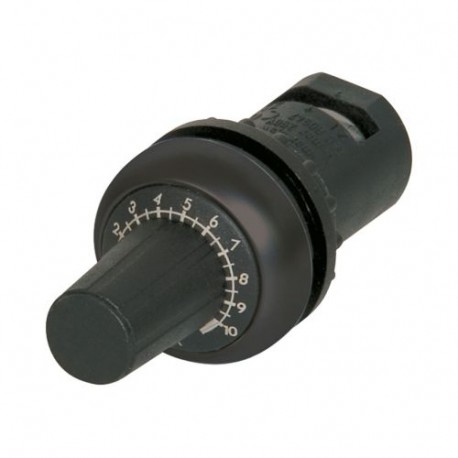

M22S-R470K 232236 Y7-232236 EATON ELECTRIC Potentiometer, 470kOhm, front mount
M22S-R470K
232236
Y7-232236
EATON - MOELLER
1 Pcs.
Automation > Potentiometer for command devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An industrial potentiometer is installed on control cabinet doors to give technicians hands-on command over adjustable process variables such as frequency inverter thresholds. This Eaton Moeller M22S-R470K component delivers dependable front-mounted resistance adjustment.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Resistance (EF002431): 470000 Ohm
- Power consumption (EF000346): 0.5 W
- Hole diameter (EF000079): 22.5 mm
- Number of revolutions (EF006943): 1
- Type of electric connection (EF003961): Screw connection
- Degree of protection (IP) (EF005474): IP66
More info
▲General specifications
UL
VDE 0660
UL File No.: E29184
IEC/EN 60947
CSA File No.: 012528
IEC/EN 60947-5
CSA
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
UL 508
CE
UL Category Control No.: NKCR
Features & Functions
General
NEMA Other
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
