View larger
Images are for illustrative purposes only. Please refer to data sheet for details

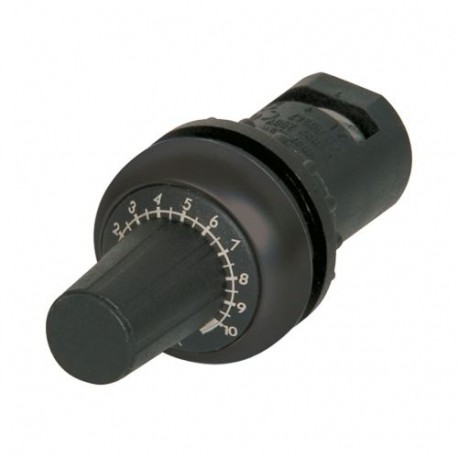

M22S-R100K 232235 Y7-232235 EATON ELECTRIC Potentiometer, 100k, front mount
M22S-R100K
232235
Y7-232235
EATON - MOELLER
1 Pcs.
Potentiometer, 100k, front mount
M22S-R100K
Eaton Moeller® series M22 Potentiometer, Classical, M22, 22.5 mm, R 100 kΩ, P 0.5 W, Bezel: black
Potentiometer, RMQ design: Classical, Part group reference (e.g. DIL): M22, Mounting hole diameter: 22.5 mm, Single unit, Description: 3 individual screw terminals, Accuracy of resistance value: ± 10% (linear), Impedance: R= 100 kΩ, Rated power: P= 0.5 W, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: no, Standards: IEC/EN 60947, VDE 0660
Automation > Potentiometer for command devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Potentiometer
Catalog Number
232235
Model Code
M22S-R100K
EAN
4015082322359
Product Length/Depth
70 mm
Product Height
29 mm
Product Width
29 mm
Product Weight
0.034 kg
Certifications
UL File No.: E29184
IEC/EN 60947-5
CSA File No.: 012528
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
VDE 0660
CSA
CE
UL 508
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947
IEC/EN 60947-5
CSA File No.: 012528
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
VDE 0660
CSA
CE
UL 508
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947
| Feature Name | Feature Value |
|---|---|
| Resistance (EF002431) | 100000 Ohm |
| Power consumption (EF000346) | 0.5 W |
| Hole diameter (EF000079) | 22.5 mm |
| Number of revolutions (EF006943) | 1 |
| Type of electric connection (EF003961) | Screw connection |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | Other |
