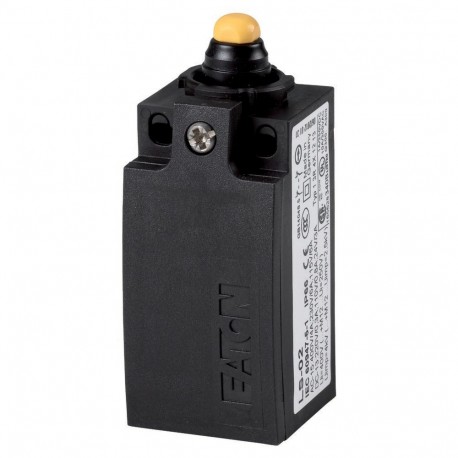

LS-S20-SW 106812 Y7-106812 EATON ELECTRIC Position switch, 2N/O, rounded plunger
LS-S20-SW
106812
Y7-106812
EATON - MOELLER
1 Pcs.
Automation > End switch
Position Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller LS-S20-SW position switch with rounded plunger is an industrial control device deployed to monitor mechanical limits and component locations. It reliably signals controller inputs when actuated by moving parts within automated production machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 31 mm
- Diameter sensor (EF007111): 0 mm
- Height of sensor (EF007283): 61 mm
- Length of sensor (EF007334): 33.5 mm
- Rated operation current Ie at AC-15, 24 V (EF007084): 6 A
- Rated operation current Ie at AC-15, 125 V (EF007082): 6 A
- Rated operation current Ie at AC-15, 230 V (EF001385): 6 A
- Rated operation current Ie at DC-13, 24 V (EF007087): 3 A
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.8 A
- Rated operation current Ie at DC-13, 230 V (EF001386): 0.3 A
- Switching function (EF000189): Slow-action switch
- Switching function latching (EF007447): No
- Output electronic (EF006987): No
- Forced opening (EF006694): No
- Number of safety auxiliary contacts (EF006940): 0
- Number of contacts as normally closed contact (EF008255): 0
More info
▲General specifications
IEC/EN 60947
UL File No.: E29184
CSA Class No.: 3211-03
IEC/EN 60947-5
CSA File No.: 012528
UL
CSA
CSA-C22.2 No. 14
UL 508
UL Category Control No.: NKCR
Features & Functions
Insulated material
General
NEMA Other
Ambient conditions, mechanical
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
Electrical rating
Actuator
For angle of actuation α = 0°/30°
Contacts
1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA)
