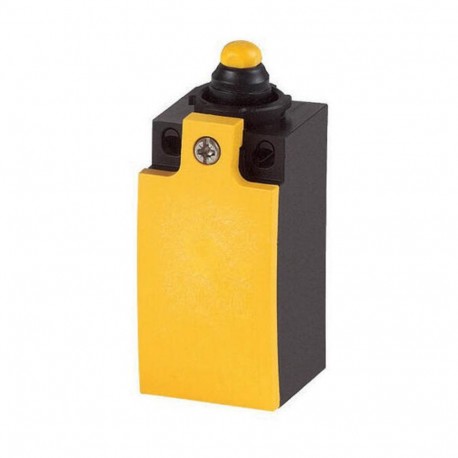

LS-S20A 106810 Y7-106810 EATON ELECTRIC Position switch, 2N/O, rounded plunger
LS-S20A
106810
Y7-106810
EATON - MOELLER
10 Pcs.
Automation > End switch
Position Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A position switch functions as a reliable contact-based sensor in manufacturing lines and automated material handling systems to monitor the physical movement of machinery. The Eaton Moeller LS-S20A utilizes a rounded plunger mechanism to trigger switching actions when depressed by moving system parts. Industrial engineers rely on these components to confirm cycle completion, component placement, or safe operational boundaries. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 31 mm
- Diameter sensor (EF007111): 0 mm
- Height of sensor (EF007283): 61 mm
- Length of sensor (EF007334): 33.5 mm
- Rated operation current Ie at AC-15, 24 V (EF007084): 6 A
- Rated operation current Ie at AC-15, 125 V (EF007082): 6 A
- Rated operation current Ie at AC-15, 230 V (EF001385): 6 A
- Rated operation current Ie at DC-13, 24 V (EF007087): 3 A
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.8 A
- Rated operation current Ie at DC-13, 230 V (EF001386): 0.3 A
- Switching function (EF000189): Slow-action switch
- Switching function latching (EF007447): No
- Output electronic (EF006987): No
- Forced opening (EF006694): No
- Number of safety auxiliary contacts (EF006940): 0
- Number of contacts as normally closed contact (EF008255): 0
More info
▲General specifications
UL Category Control No.: NKCR
CSA File No.: 012528
CSA Class No.: 3211-03
IEC/EN 60947-5
CE
CSA-C22.2 No. 14
UL File No.: E29184
UL
CSA
IEC/EN 60947
Features & Functions
Insulated material
General
NEMA Other
Ambient conditions, mechanical
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
Electrical rating
Actuator
For angle of actuation α = 0°/30°
Contacts
1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)
