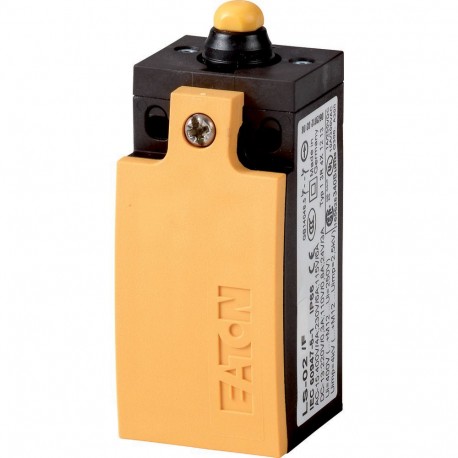

LS-S20/F 106809 Y7-106809 EATON ELECTRIC Position switch, 2N/O, rounded plunger
LS-S20/F
106809
Y7-106809
EATON - MOELLER
1 Pcs.
Automation > End switch
Position Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller position switch, model LS-S20/F, is a mechanical sensor designed to detect the location or trajectory of moving structural elements within automated industrial installations. Equipment manufacturers deploy these components to govern repetitive mechanical cycles, establish operational boundaries, and interface with control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 31 mm
- Diameter sensor (EF007111): 0 mm
- Height of sensor (EF007283): 61 mm
- Length of sensor (EF007334): 33.5 mm
- Rated operation current Ie at AC-15, 24 V (EF007084): 6 A
- Rated operation current Ie at AC-15, 125 V (EF007082): 6 A
- Rated operation current Ie at AC-15, 230 V (EF001385): 6 A
- Rated operation current Ie at DC-13, 24 V (EF007087): 3 A
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.8 A
- Rated operation current Ie at DC-13, 230 V (EF001386): 0.3 A
- Switching function (EF000189): Slow-action switch
- Switching function latching (EF007447): No
- Output electronic (EF006987): No
- Forced opening (EF006694): No
- Number of safety auxiliary contacts (EF006940): 0
- Number of contacts as normally closed contact (EF008255): 0
More info
▲General specifications
UL
CSA
UL File No.: E29184
CE
CSA File No.: 012528
UL 508
CSA Class No.: 3211-03
CSA-C22.2 No. 14
UL Category Control No.: NKCR
IEC/EN 60947
Product specifications
Damp heat, constant, to IEC 60068-2-78
Insulated material
1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA)
NEMA Other
Max. 1/0.5 m/s (with DIN cam, mechanical actuation)
