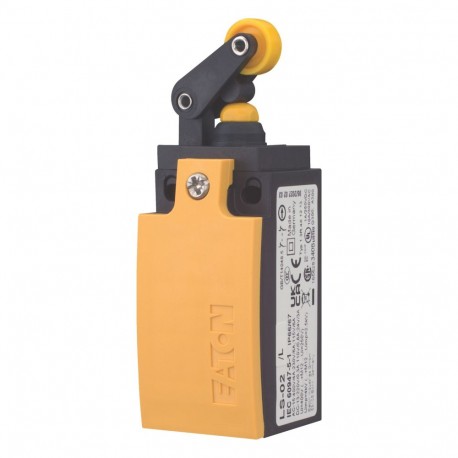

LS-02/L 266108 Y7-266108 EATON ELECTRIC Position switch, 2 N/C, roller lever
LS-02/L
266108
Y7-266108
EATON - MOELLER
2 Pcs.
Automation > End switch
Position Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Featuring a durable roller lever configuration, the LS-02/L 266108 Y7-266108 EATON ELECTRIC Position switch, 2 N/C, roller lever from Eaton Moeller is utilized across industrial machinery to monitor object positions and manage movement limits. Position switches provide critical feedback loops to control panels, enabling safe and repeatable operational cycles in automated environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 31 mm
- Diameter sensor (EF007111): 0 mm
- Height of sensor (EF007283): 61 mm
- Length of sensor (EF007334): 33.5 mm
- Rated operation current Ie at AC-15, 24 V (EF007084): 6 A
- Rated operation current Ie at AC-15, 125 V (EF007082): 6 A
- Rated operation current Ie at AC-15, 230 V (EF001385): 6 A
- Rated operation current Ie at DC-13, 24 V (EF007087): 3 A
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.8 A
- Rated operation current Ie at DC-13, 230 V (EF001386): 0.3 A
- Switching function (EF000189): Slow-action switch
- Switching function latching (EF007447): No
- Output electronic (EF006987): No
- Forced opening (EF006694): Yes
- Number of safety auxiliary contacts (EF006940): 2
- Number of contacts as normally closed contact (EF008255): 2
More info
▲General specifications
UL File No.: E29184
CE
UL
CSA File No.: 012528
CSA-C22.2 No. 14
IEC/EN 60947
CSA
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA Class No.: 3211-03
Product specifications
Forced opening
Damp heat, constant, to IEC 60068-2-78
Insulated material
1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)
NEMA Other
Max. 1 m/s (with DIN cam, mechanical actuation)
